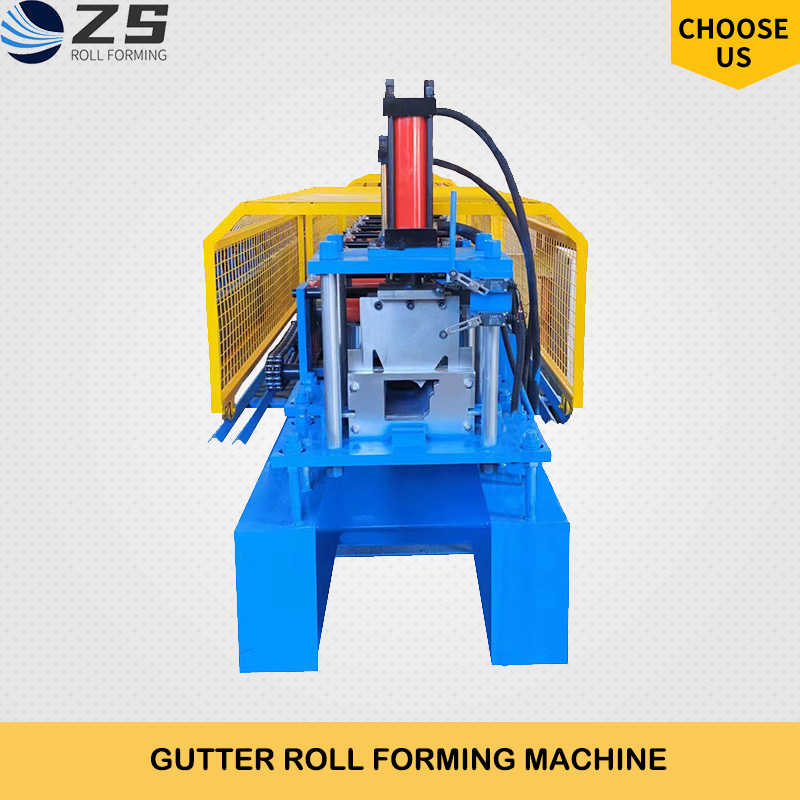

Color Steel Water Proof Roof Rain Gutter Downspout Roll Forming Machine
The gutter roll forming machine equipment is mainly composed of an active belt shaft, a leveling device, a side wheel for squeezing thick sides, a forming host, a forming cutting device, a hydraulic station, and a computer control cabinet.
We customize gutter roll forming machine follow with customer's requirement.
This machine working for :
Thickness:0.3-0.6mm
Coil width:355mm
Material:G550
Working Flow:
Decoiler---Guiding device---Roll forming---Hydraulic cutting/punching system---Run out table
Pre-cutting will be cut the coil when PLC order finish, it is can save material.
All rollers use 45# steel,with hard treatment and chrome coating, processed by CNC milling machine,then we can make sure profile roll forming in high precision and get perfect produce.
Specification Of Main Roll Forming Machine:
Stations: 20
Rollers material: 45#steel, HRC 60. Chrome coated: 0.03-0.05mm, Strength (MPA): 70 tons, 800 MPA
Shaft: diameter 70 mm, material is Cr40. Quenched hot treatment. Strength of the main shaft (MPA): 70 tons, 650MPA
Bearing brand: CHINA
Main motor: 4KW , 380V, 50HZ, 3 Phases
Transmission by chain
Machine is equipped with cooling system
Touch screen brand: Delta
PLC brand: Delta
Inverter brand: Sanjing
Main components for low pressure electricity: Schneider Germany
Encoder: Omron
It is support punching hole on the gutter profile:
Bending Machine is match with roll forming machine, it is used for gutter connect well when install in the house:
Advantage of gutter roll forming machine:
We have rich experience to help customer start this project,we offer professional roll forming solution to you.
High precision process rollers and shaft,then it is can make sure gutter profile forming in stable.
Easy operating and save labors, one worker can running this machine.
Use:
Gutters are a crucial component of your home’s water management system. Without gutters, you will easily wind up with water damage on your roof and other areas of your home’s interior and exterior.
